Product Details

This automatic lathe is customized for rough turning the inner bore of outer races. With a maximum swing diameter over bed of 400mm, it is suitable for processing outer races of various specifications, including those with an inner bore diameter of 80-250mm and a depth of 180-480mm. It ensures the precision of deep bore machining through dual-support positioning and real-time coaxiality compensation, achieves a surface roughness of Ra3.2-Ra1.6 with a high-pressure chip removal system and special tools, and guarantees the efficiency and safety of mass production via an automatic loading and unloading system and an intelligent monitoring system. It is applicable to the needs of automotive, construction machinery and other fields.

Product Advantages

1: Excellent anti-deflection performance in deep bore machining. The dual-support positioning and real-time compensation technology control the coaxiality error within ≤0.02mm, avoiding excessive taper or ovality of the inner bore.

2: Superior efficient chip removal and inner bore wall protection. The combination of 1.2MPa high-pressure cooling oil and negative pressure chip suction increases chip removal efficiency by more than 90%, and the special tools help reduce scratches on the inner bore wall.

3: Intelligent adaptation to multi-material machining. Exclusive parameter templates for aluminum alloys and high-strength steels are preset, and matched with targeted tools. The machining qualification rate of both materials reaches over 99.5%, and the automatic system reduces production losses.

Outer Clamping Flipping Construction

Enables secure external clamping of the outer race and automatic flipping for different machining orientations, ensuring precise positioning and reducing setup time.

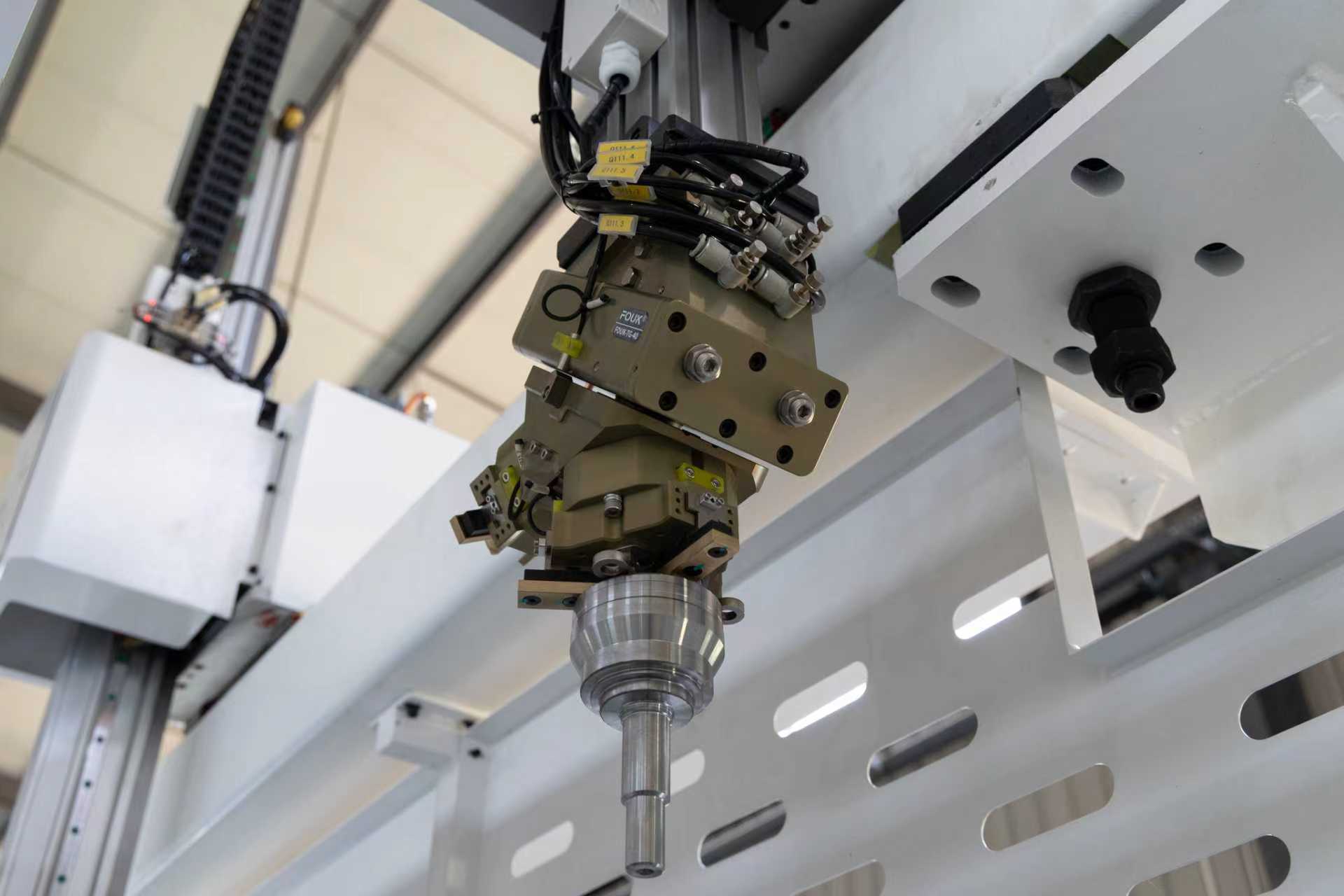

Inner Clamping Loading Manipulators

Provides automated inner clamping and handling of workpieces, improving loading accuracy, stability, and production efficiency.

Hydraulic Clamping Fixture

Offers strong and stable clamping force during precision turning, minimizing vibration and ensuring high machining accuracy for the inner hole.

Workpiece

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

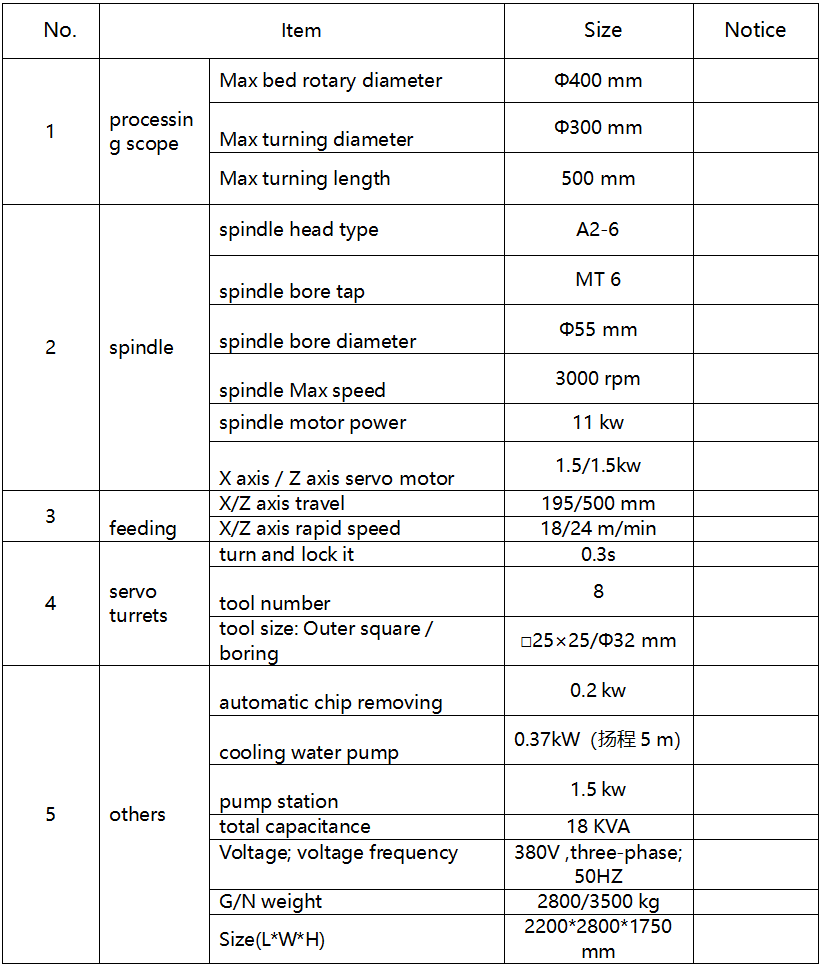

Technical Data

Recommended Machines
