Product Details

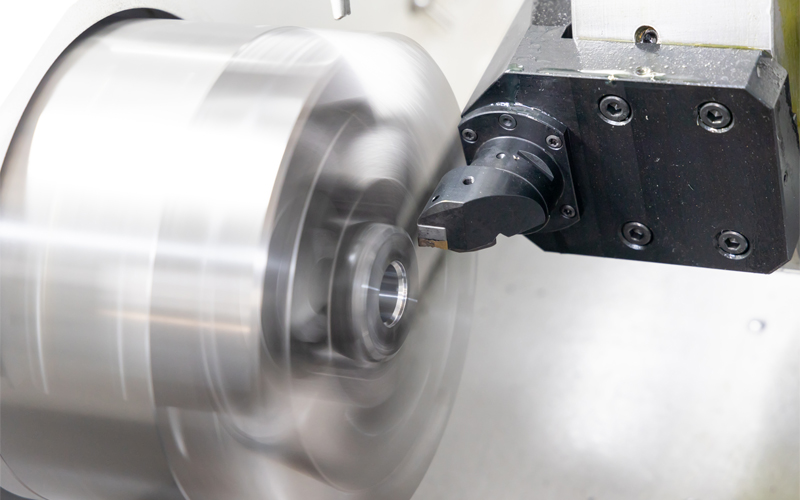

High precision CNC lathe for automated turning of inner race inner holes and end faces. Supports max bed rotary Ø400mm, turning diameter Ø300mm, and length up to 500mm. Equipped with 8 tools, it ensures outer circle roundness ≤0.006mm, cylindrical diameter consistency 0.015mm/100mm, end face flatness 0.015mm within Ø100mm, and surface roughness Ra1.6–Ra3.2. Ideal for high-efficiency, automated production lines requiring consistent precision.

Product Advantages

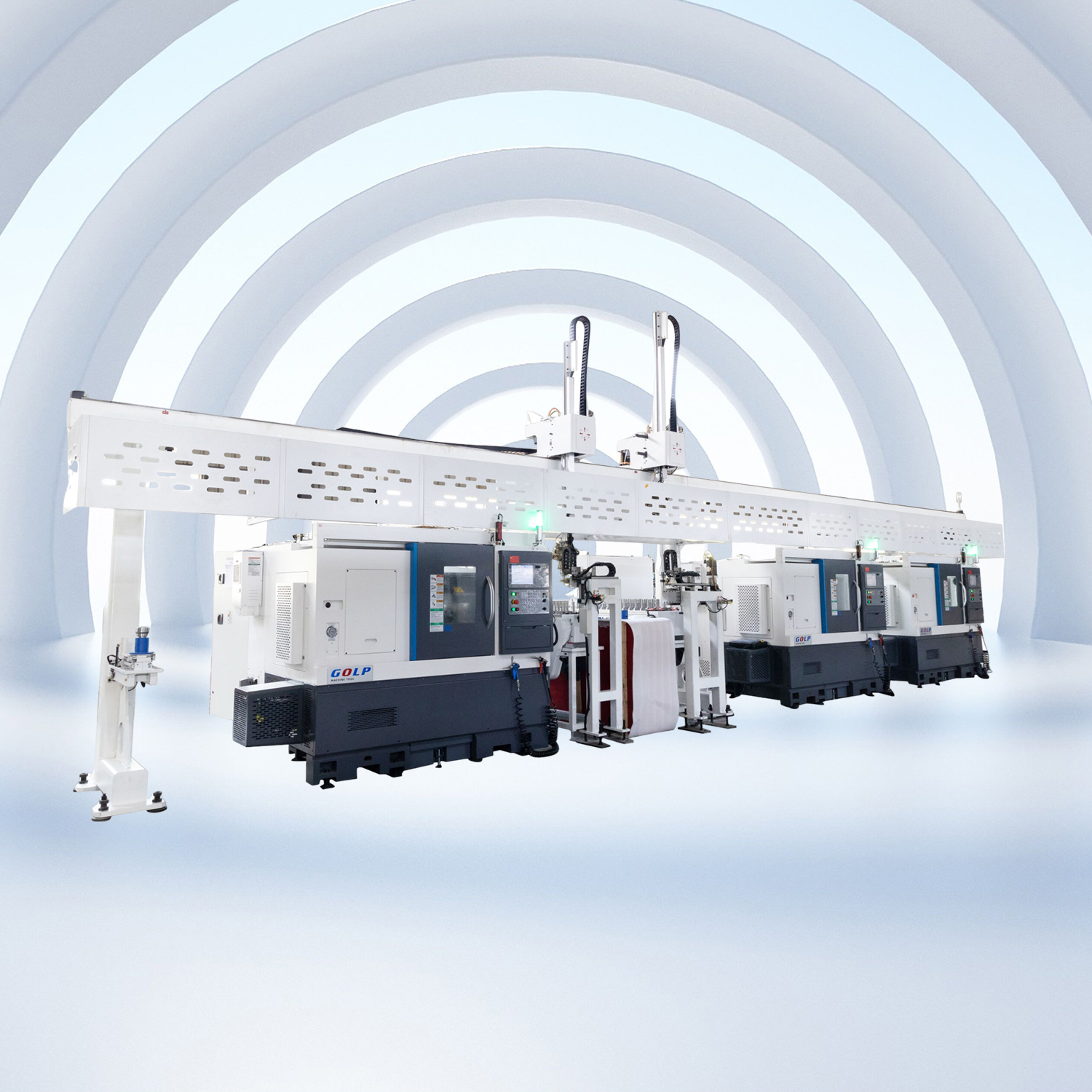

Automatic Truss Manipulator

Provides fast and stable workpiece transfer, enabling fully automated handling between stations and reducing manual intervention.

Handling Mechanism

Ensures precise positioning and reliable gripping of star-shaped sleeves during loading, turning, and unloading, minimizing errors.

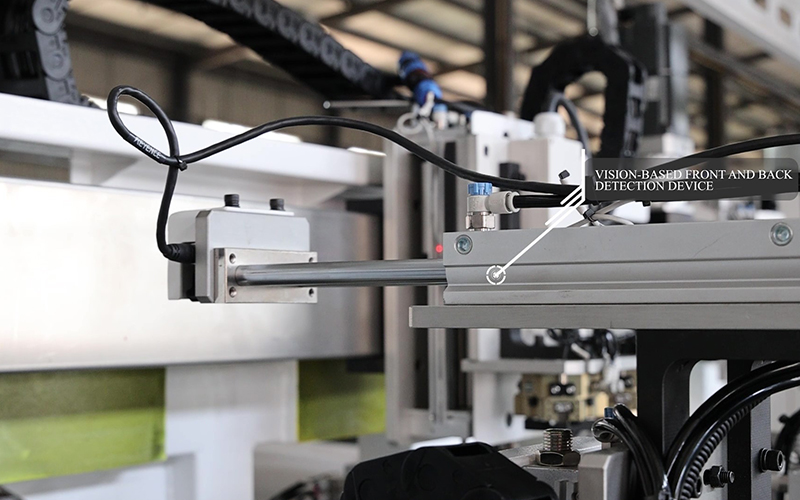

Vision-Based Front and Back Detection Device

Automatically identifies the orientation of the workpiece, preventing incorrect loading and ensuring machining accuracy.

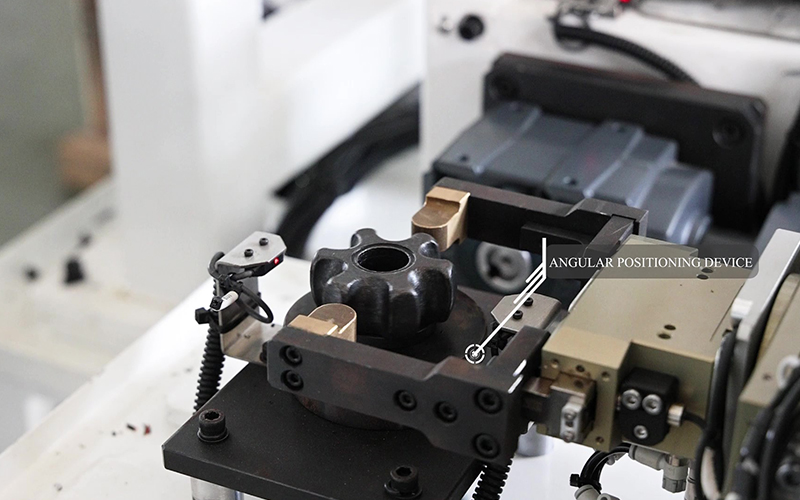

Angular Positioning Device

Guarantees correct alignment of the workpiece before machining, improving dimensional precision and repeatability.

Automatic Loading and Unloading

Integrates seamlessly with the manipulator and handling system to achieve continuous production, saving labor and time.

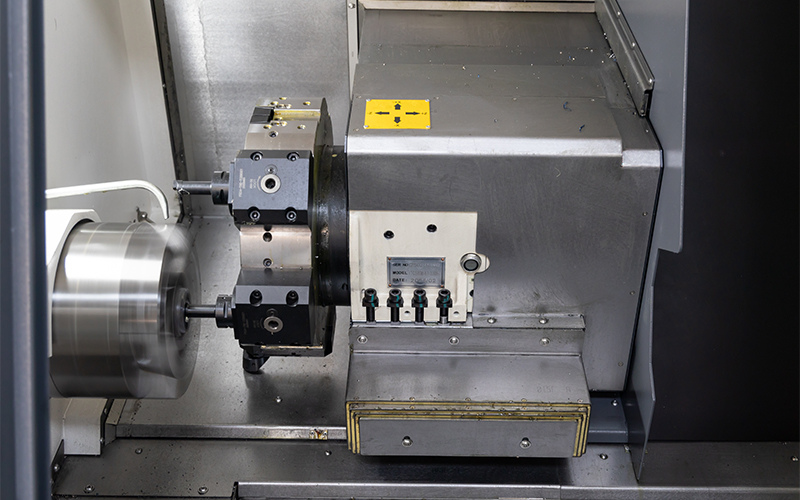

8-Station Rotary Turret

Allows flexible tool changes with up to 8 tools, supporting multi-step machining in one setup, increasing efficiency.

Hydraulic Clamping Fixture

Provides stable and secure clamping force, preventing vibration during turning and ensuring high machining accuracy.

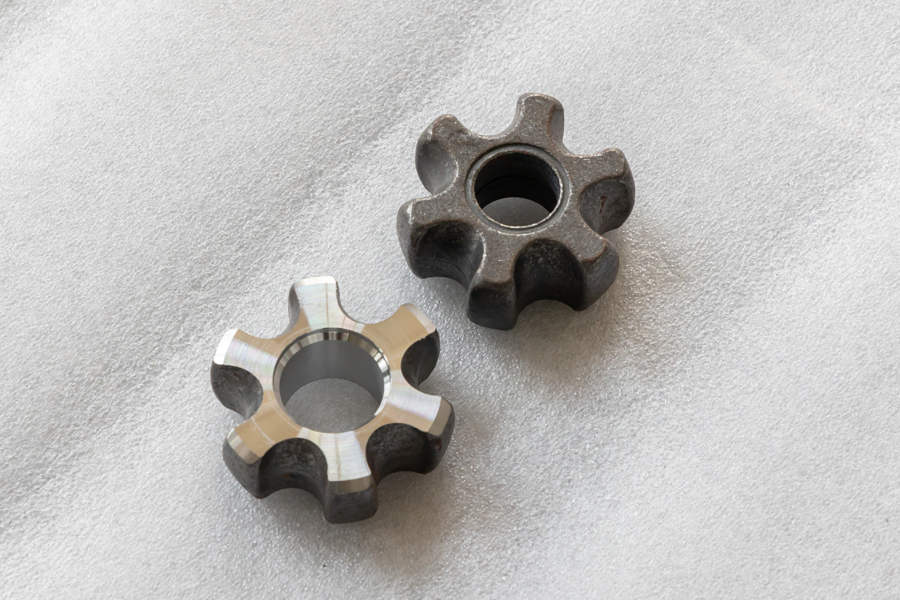

Workpiece

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

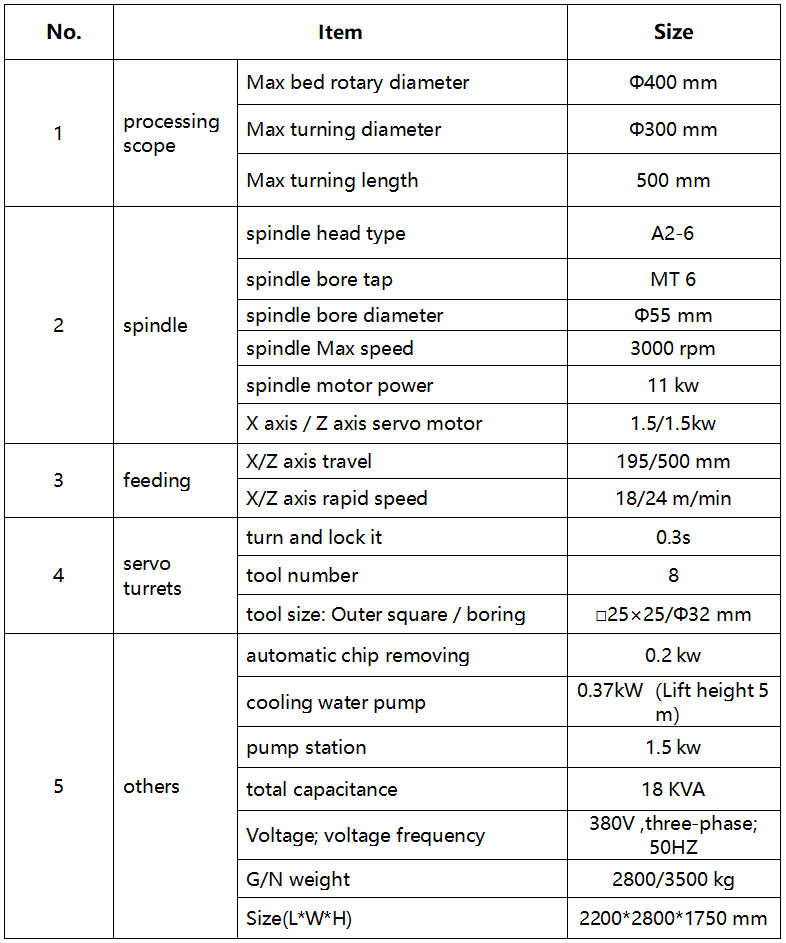

Technical Data

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
