Product Details

The processing cycle for core procedures (end face turning + outer diameter turning) takes only 50 seconds (excluding loading and unloading time), which significantly shortens the single-piece processing cycle. Compared with traditional equipment, the production capacity is increased by more than 30%, easily matching the mass production rhythm of the auto parts industry.

Product Advantages

1. While achieving fast processing in 50 seconds, it maintains an end face flatness of 0.015mm and a surface roughness of Ra3.2-Ra1.6, which meets the standards without secondary grinding. It not only ensures production capacity but also eliminates the subsequent correction costs, reducing the comprehensive processing cost per inner race by more than 20%.

2. Equipped with an A2-6 spindle head type and a spindle bore diameter of Φ55mm, the spindle has a maximum speed of 3000rpm. It combines high-speed cutting efficiency with high rigidity processing stability, and is suitable for various materials commonly used for inner races, such as carbon steel and alloy steel.

3. It supports 24-hour continuous operation of the equipment, and a single production line can reduce 2-3 operators, lowering labor costs.

Workpiece

CV joint components, such as the outer race, inner race, and cage window, place high demands on machine tools. To enable efficient production, we offer tailored manufacturing solutions. More

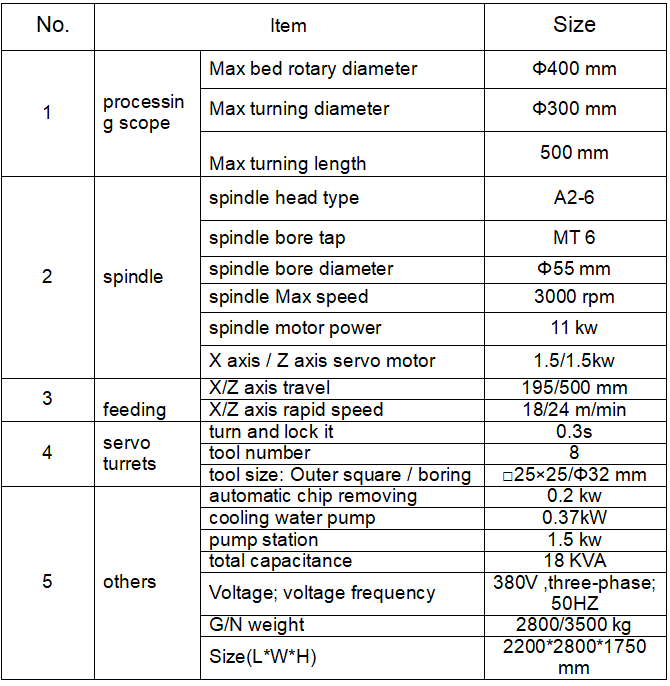

Technical Data

Recommended Machines

Contact Us for a Quotation

We are pleased to offer you further details and a comprehensive quotation. Feel free to contact us using the following options:

Email: info@golpmachinery.com

Thank you for your interest and support!

FAQ

Q: What are the Payment Terms?

A: We accept T/T payment method. A 40% deposit is required to confirm the order, and the remaining 60% must be paid before the shipment is arranged.

Q: What are your trade terms?

A: We offer flexible trade terms including FOB, CFR, and CIF, so you can choose the one that best suits your needs.

Q: When is the delivery time?

A: The estimated delivery time is 3 to 6 months, depending on the order details and production schedule.

Q: What is your minimum order quantity and warranty?

A: The minimum order quantity is one set. We offer a reliable one-year warranty on all machines.

Q: How are the machines packaged?

A: Each machine is carefully packed in a durable wooden crate to ensure safe and damage-free delivery.

Q: How can I choose the most suitable machine?

A: Simply provide us with your technical requirements, and we will suggest the most suitable model. Alternatively, you can choose the model yourself or send us your product drawings, and we will help you determine the best machine configuration.
